If you have been searching for honest, practical advice on aluminium guttering without all the jargon, you have landed in the right place. Whether you are replacing tired uPVC on a Victorian terrace, speccing a commercial rainwater system, or sourcing materials for a conservation project, this guide covers everything: profiles and sizing, how to install it properly, how much it costs, and why aluminium is increasingly the professional's choice across the UK.
What Is Aluminium Guttering?
Aluminium guttering is a rainwater management system manufactured from aluminium alloy, designed to collect rainwater from a roof edge and channel it safely down to ground-level drainage. It has been used in the UK construction industry for decades and is now widely regarded as one of the most reliable, low-maintenance, and sustainable options on the market.
Aluminium is an incredibly versatile metal. Our full aluminium rainwater goods range at Online Metal Store includes guttering in multiple profiles, matching downpipes, outlets, angles, stop ends, and all the fittings you need to complete a watertight system. Every product is powder coated at the factory for a finish that holds its colour and resists corrosion for decades.
Extruded vs Cast Aluminium Guttering
There are two main manufacturing methods, and it is worth understanding the difference before you specify.
Extruded Aluminium Guttering
Extruded guttering is formed by pushing aluminium alloy through a shaped die, producing a consistent, lightweight profile. It is the most common type used in new builds and straightforward domestic replacements. High-grade alloys such as 6063 T6 offer excellent strength-to-weight ratios and resist corrosion without any special treatment beyond the powder coat. Extruded gutters are supplied in standard lengths, usually 2 to 4 metres, and join together with either a snap-fit clip system or traditional nut-and-bolt fixings.
Cast Aluminium Guttering
Cast aluminium guttering is made using traditional sand-casting techniques that replicate the visual detail of period cast iron. If you have a listed building, a Victorian property, or a conservation project that demands authentic heritage detailing, cast aluminium is the answer. It is heavier than extruded, though still considerably lighter than genuine cast iron, and is available in the same classic profiles: ogee, Victorian ogee, moulded ogee, and beaded half-round. See how we handled a recent residential project in North Finchley to get a feel for what cast aluminium can achieve in practice.
Quick TipNot sure whether to go extruded or cast? A simple rule of thumb: if the property was built after 1950 or has no heritage constraints, extruded aluminium is the practical, cost-effective choice. If heritage detailing matters, go cast.
Why Choose Aluminium Over Other Materials?
Aluminium guttering sits in a sweet spot that no other mainstream material quite matches. It is stronger and longer-lasting than plastic, lighter and lower-maintenance than cast iron, and more flexible in terms of colour and profile than steel. Here is a direct comparison to help you make an informed decision.
| Property | Aluminium | uPVC / Plastic | Cast Iron | Steel |
|---|---|---|---|---|
| Expected lifespan | 40 to 60 years | 20 to 25 years | 50 to 100 years | 25 to 40 years |
| Weight | Light | Very light | Heavy | Moderate |
| Corrosion resistance | Excellent | Excellent | Poor without maintenance | Moderate |
| Cold weather performance | Will not crack | Brittle below -5°C | Excellent | Good |
| Colour options | Any RAL colour | Limited standard colours | Limited | Any RAL colour |
| Fully recyclable | Yes, infinitely | Partially | Yes | Yes |
| DIY installation | Achievable | Easy | Difficult | Achievable |
| Relative cost | Moderate | Lowest | Highest | Moderate-high |
The Case for Aluminium in the UK Climate
Britain does not have the most forgiving weather. We get freeze-thaw cycles in winter, intense short bursts of rainfall that can overwhelm undersized systems, coastal salt air in coastal counties like Essex, Suffolk, and Kent, and UV exposure that quietly degrades cheaper materials over time. Aluminium handles all of these conditions extremely well:
Freeze-thaw resilience. Unlike uPVC, which becomes brittle and prone to cracking when temperatures drop sharply, aluminium remains ductile in cold weather. This is a meaningful advantage in parts of the country that regularly dip below freezing.
No rust, ever. Aluminium forms a stable oxide layer on its surface that prevents corrosion. Add a factory powder coat and the system is essentially maintenance-free for its entire working life.
Coastal suitability. Marine-grade aluminium with a heavy-duty polyester powder coat is the professional specification for any property within a few miles of the coast, where salt-laden air would quickly degrade steel or untreated metals. Our rainwater goods range can be specified in marine-grade alloy on request.
Fire classification. Aluminium is classified as non-combustible under BS 476-4 and Class A1 under European standard EN 13501-1. This makes it fully compliant with Approved Document B for use on buildings of any height, including high-rise residential, schools, and healthcare facilities where fire performance is paramount.

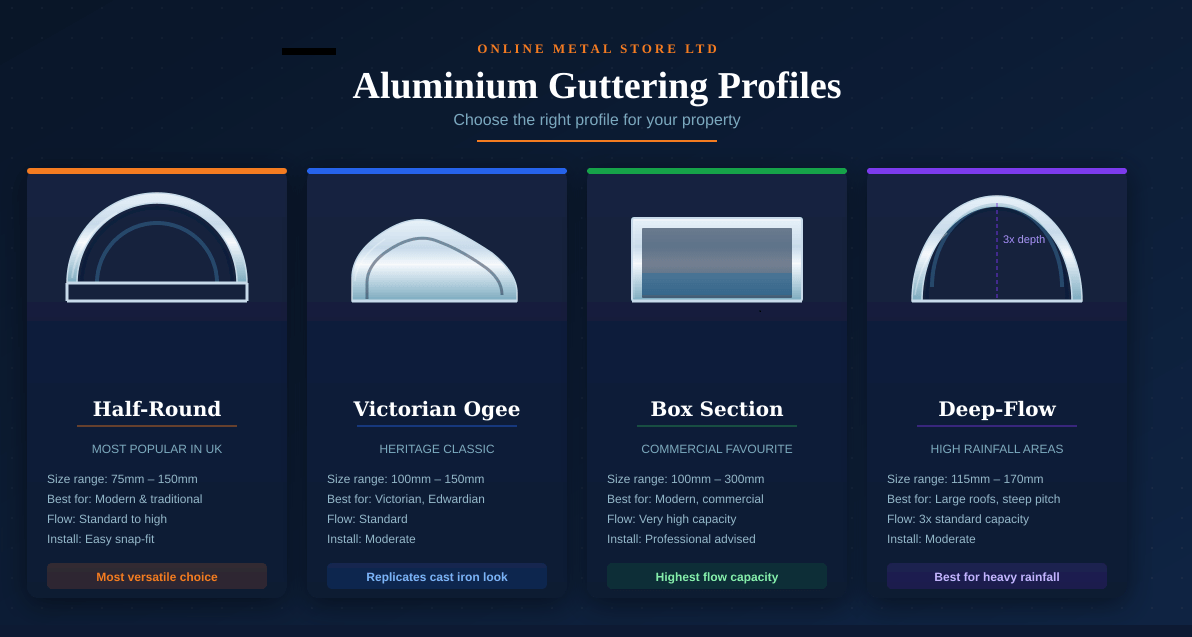

Profiles, Sizes, and Colours
Choosing the right profile is not just about aesthetics, though that matters too. It is also about flow capacity, compatibility with the building's style, and ease of sourcing matched fittings. Here are the profiles you are most likely to encounter:
Half-Round
The most widely used profile in the UK. Clean, symmetrical, and available in sizes from 75mm to 150mm. Suits modern and traditional properties alike. Easy to fit and readily available with a full range of matching accessories.
Victorian Ogee
The classic S-shaped profile seen on Victorian and Edwardian properties. Available in extruded and cast versions. Recreates the look of period cast iron authentically and is still specified on heritage and conservation projects today.
Moulded Ogee
A broader, more ornate profile than the standard ogee. Higher flow capacity thanks to its deeper cross-section. Popular on larger Victorian villas, churches, and grand period properties.
Box Section (Square)
Preferred for contemporary and industrial architecture. Clean right-angled lines suit flat-roof extensions, commercial buildings, and modern housing developments. Available in large sizes for high-volume drainage.
Deep-Flow Half-Round
A deeper version of the standard half-round with around three times the flow capacity of a conventional domestic profile. Specified where high rainfall intensity or large catchment areas demand extra performance.
Beaded Half-Round
Adds a decorative bead to the front lip of the half-round profile for a more ornate finish. Often used on prestige residential projects where detail matters but authenticity of a full cast profile is not required.
Getting the Size Right
Guttering that is too small will overflow during heavy rainfall, potentially causing damp, staining, and structural damage over time. Too large and you are spending money you do not need to. Sizing is calculated on the basis of two variables: the roof's catchment area (measured in square metres) and the peak rainfall intensity for your region (measured in litres per second per square metre, published in BS EN 12056-3).
As a practical starting point for typical domestic UK properties:
A 100mm or 112mm half-round gutter with a 68mm round downpipe handles the majority of three-bedroom semi-detached houses with pitches up to 30 degrees. Extend to a 125mm or 150mm profile for larger detached homes, steep pitches above 45 degrees, or roofs with extended overhangs. Commercial and industrial projects almost always require at least 150mm gutters and multiple downpipes calculated on actual rainfall data.
Important Note on Downpipe PlacementEven a correctly sized gutter will overflow if the downpipes are spaced too far apart or positioned at the wrong end. For most profiles, downpipes should be placed at the lowest point of each gutter run, with no gutter run exceeding 12 metres without an additional outlet. Our team can help you plan the layout before you order.
Colour and Finish Options
One of aluminium guttering's underrated advantages is the sheer breadth of colour choice. The powder coating process allows virtually any RAL or BS colour, meaning you can match your guttering to window frames, fascias, cladding, or architectural metalwork elsewhere on the building.
Popular choices in the UK include RAL 9005 Jet Black, RAL 7016 Anthracite Grey, RAL 9010 Pure White, and RAL 6009 Fir Green for heritage properties. Our aluminium fascia and soffit range is also available in matched powder coat finishes, so you can create a fully coordinated roofline system.
How to Install Aluminium Guttering: Step by Step
If you are replacing old uPVC guttering on a straightforward domestic property, aluminium sectional guttering is well within the capability of a competent DIYer. That said, never underestimate the importance of ladder safety, correct fall calculation, and a proper sealant application. Get the basics wrong and even the best-quality aluminium will leak.
For bespoke box gutters, large commercial runs, or any project requiring structural support changes, always use a qualified installer. Our bespoke aluminium box gutter installation case study shows the level of complexity involved in a professional commercial installation.
Before You Start: Tools and Materials
Gather the following before you begin. Trying to improvise fixings or sealant mid-installation leads to leaks and frustration.
You will need: gutter sections, stop ends, angles (internal and external), outlets, union brackets or clip joints, fascia brackets at 1 metre intervals, A2-grade stainless steel screws (never zinc-plated, which will cause bi-metallic corrosion against aluminium), a low-modulus silicone sealant, a hacksaw with an 18-teeth-per-inch blade or an aluminium-specific circular saw blade, a tape measure, a chalk line, a spirit level, a pencil, safety goggles, work gloves, and a stable ladder with a safe working platform.
Installation Steps
Remove the Existing Guttering
Work safely from a ladder or scaffold platform. Unclip or unbolt existing sections and lower them carefully. Remove old fascia brackets and clear away any debris, old sealant, or rust from the fascia board. Inspect the fascia timber for rot at this point and replace or treat any damaged sections before fitting the new system.
Establish the Fall Line
Aluminium guttering must fall towards the outlet at a minimum gradient of 1:600 (approximately 1.7mm per metre) to drain properly. Mark the highest point of the gutter run at the fascia, then use a chalk line to mark a consistent fall towards the outlet position. If the run is longer than 6 metres, consider falling from both ends towards a central outlet to reduce the visible drop.
Fix the Outlet First
Fit the outlet bracket at the lowest point of the chalk line. This fixes the datum for everything else. Use two A2 stainless steel screws per bracket through the fascia into the rafter tails or solid timber behind. Do not rely on fascia boards alone if they show any signs of movement.
Fix Fascia Brackets at 1 Metre Intervals
Working back from the outlet, fix brackets every 1 metre along the chalk line. Check each one for alignment with a spirit level and ensure the bracket positions match the chalk line gradient precisely. On longer runs, snap a second chalk line between brackets after fixing to confirm consistent fall.
Cut Gutter Sections to Length
Measure each run carefully. Cut aluminium with a hacksaw using the 18-TPI blade, or a fine-tooth circular saw blade rated for aluminium. Support the section to prevent vibration and file or deburr cut edges after cutting to remove sharp burrs that can damage joint seals. If using a circular saw, applying tallow or cutting wax to the blade produces a cleaner cut and extends blade life.
Apply Sealant to Joints
This step is critical. Use a low-modulus silicone sealant, not a standard frame sealant. Low-modulus silicone remains permanently elastic and accommodates the thermal movement that aluminium undergoes between summer and winter. Apply a consistent bead to both sides of each union joint or clip connector before assembling. Wipe away any excess with a clean, damp cloth before it cures.
Why Low-Modulus Sealant Matters
Standard silicone hardens over time and will crack as the aluminium expands and contracts seasonally. Low-modulus silicone moves with the metal indefinitely. Using the wrong sealant is one of the most common causes of aluminium gutter joint failure.
Fit the Gutter Sections
Clip or bolt each section into the brackets, working from the outlet end back towards the highest point. For snap-fit systems, ensure each section clicks fully into the bracket clip. For bolt-fix systems, tighten nuts finger-tight first, then snug them down without over-torquing, which can distort the aluminium profile.
Fit Stop Ends, Angles, and Accessories
Apply sealant to all stop ends, angle pieces, and any other fitting that requires a watertight joint. Snap or bolt into position. At corners, use either a 90-degree angle fitting or a mitre cut, with sealant applied generously at the joint.
Fit the Downpipes
Connect the downpipe to the outlet using an offset bend if needed to bring the pipe flush against the wall. Fix the downpipe at every 1.8 metres vertically using pipe clips and A2 stainless steel screws. Ensure the pipe terminates at least 50mm above the ground drainage point to prevent back-flooding. Use a swan neck bend at the bottom if discharging into a ground gully.
Test the System
Allow sealant to cure fully (typically 24 hours, longer in cold weather). Then pour water from a watering can at the highest point of each gutter run and watch it travel to the outlet. Check every joint carefully for weeping and re-seal any that show a problem. A few minutes testing now saves a call-back in the first rainstorm.
Professional Installation AvailableOnline Metal Store Ltd offers supply and installation of bespoke aluminium rainwater systems across London and the South East. Contact our team to discuss your project requirements.
Industrial and Commercial Applications
Aluminium guttering is not just for houses. Its combination of structural performance, fire compliance, long service life, and design flexibility makes it the specification of choice across a wide range of commercial, industrial, and institutional building types.
Schools and Educational Buildings
Schools experience high levels of foot traffic on adjoining hard surfaces, which means effective rainwater management is essential to prevent pooling, icing, and liability risk. Aluminium box gutters are frequently specified on flat-roof school extensions, with large-bore downpipes positioned at regular intervals to handle sudden intense rainfall. Fire classification under Class A1 also satisfies the requirements of Approved Document B without additional upgrading.
Case Study: Highgate School, London
Our team at Online Metal Store Ltd delivered a bespoke aluminium box gutter installation at Highgate School, providing a high-capacity, architecturally sympathetic rainwater solution for a heritage school building. The aluminium was powder coated in a matched heritage colour to complement the existing stonework.
Commercial Warehousing and Industrial Units
Large industrial roofs with steel or fibre cement cladding require high-volume guttering systems capable of handling thousands of litres of water per hour during peak rainfall events. Box section aluminium gutters in 150mm to 300mm widths are standard specification for this type of application. Their lightweight nature means reduced loading on fascia and structure compared to steel alternatives.
Heritage and Conservation Projects
Listed buildings and conservation areas require guttering that matches the visual character of the original construction. Cast aluminium in traditional ogee, Victorian ogee, or beaded half-round profiles replicates the appearance of Victorian cast iron whilst meeting the practical requirements of a 21st-century building: lightweight installation, no rusting, and a powder coat finish available in period-appropriate colours including black, dark green, and slate grey.
Flat-Roof Extensions and Modern Architecture
Contemporary architectural projects increasingly use fully integrated aluminium rainwater systems where the guttering, fascia, soffit, and coping form a single coordinated detail at roof level. Our aluminium coping range integrates cleanly with aluminium box gutters to create a sharp, minimal parapet detail that is both weatherproof and visually refined. The Mellish Street coping case study shows this approach applied to a prestige London residential project.
Coastal and Marine Environments
Properties within several kilometres of the coast face accelerated corrosion from salt-laden air. Marine-grade aluminium alloys combined with a thick-film polyester powder coat rated for high-corrosion environments provide the level of protection these locations demand. Specify A2-grade stainless steel fixings throughout and avoid any zinc-plated components that will corrode rapidly in salt air.
Applications at a Glance
Residential new builds and refurbishments, school and university campuses, NHS and healthcare facilities, warehousing and distribution centres, listed buildings and conservation areas, modern commercial office developments, coastal properties and marinas, flat-roof residential extensions.
Maintenance and Long-Term Care
One of aluminium guttering's greatest practical advantages is how little it asks of you once it is installed. Unlike cast iron, which needs periodic painting to prevent rust, or uPVC, which can discolour, warp, and crack without warning, aluminium simply gets on with the job year after year with minimal intervention.
Routine Checks (Annual)
A once-a-year inspection in autumn, after the leaves have fallen, takes around 20 minutes and is all the maintenance most aluminium guttering systems need. Clear any accumulated debris from gutter channels, particularly at outlets and angles where blockages most commonly form. Check that all brackets are still secure and that no sections have sagged out of their correct fall. Flush the system with a hose from the highest point to confirm water flows freely to each outlet.
Checking and Refreshing Joints
Joints sealed with low-modulus silicone rarely fail, but it is worth running your eye along each one during your annual check. If you spot a weeping joint, dry the area thoroughly, apply fresh low-modulus silicone over the existing seal, smooth it with a wetted finger, and allow it to cure fully before the next rainfall. This is a five-minute repair that prevents potentially costly water damage to fascia boards and masonry below.
Repainting Aluminium Guttering
Factory powder coating is extremely durable and typically does not need any attention for 15 to 20 years. If you want to repaint at any point, lightly key the surface with 220-grit abrasive paper, clean away all dust, apply a suitable etch primer or self-etching primer formulated for aluminium, and finish with an exterior-grade paint in your chosen colour. Avoid oil-based paints, which can react with the aluminium oxide layer.
What to Avoid
Never use an angle grinder to cut aluminium guttering in situ, as sparks can damage the powder coat on adjacent sections. Avoid using incompatible metals such as copper clips or zinc-plated fixings in contact with aluminium, as galvanic corrosion will result. Do not use abrasive cleaning pads on the powder coat surface, which will scratch the finish.
Gutter Guard ConsiderationIn areas with heavy tree cover, a proprietary aluminium mesh gutter guard installed inside the profile can significantly reduce the frequency of debris clearance and help prevent the blockages that cause overflow damage to walls and foundations.
Costs and Budget Planning
Aluminium guttering costs more upfront than uPVC but significantly less over its lifetime. When you factor in a service life two to three times longer, zero repainting costs, and no brittleness-related failures, the total cost of ownership calculation often favours aluminium even from a purely financial perspective.
Typical Costs for a UK Domestic Property
For a standard three-bedroom semi-detached house requiring approximately 20 to 30 metres of guttering, standard fittings, and 6 to 8 metres of downpipe, expect to budget in the region of £900 to £1,500 for materials and professional installation. This assumes standard extruded half-round or ogee profiles in a standard stock colour.
Factors That Affect Cost
Profile choice. Cast aluminium costs more than extruded due to the more labour-intensive manufacturing process. Box section profiles in larger sizes are also more expensive than standard domestic half-round.
Colour specification. Stock colours (typically black, white, and anthracite grey) attract the lowest price. Bespoke RAL colours require a custom powder coat run with associated minimum order quantities and lead times.
Access. Properties requiring scaffolding rather than simple ladder access will incur scaffold hire costs, which can add £500 to £2,000 or more depending on the height and scope of the building.
Ancillary work. Fascia board replacement, soffit work, or structural repairs discovered during installation will add to the overall project cost. It is always worth budgeting a 10 to 15 per cent contingency for older properties.
Commercial scale. Large commercial and industrial projects are priced on a square-metre basis with volume discounts on materials. Contact our team for a bespoke trade quotation on commercial quantities.
Supply-Only Pricing
If you are a builder or installer purchasing materials only, aluminium guttering is priced per linear metre with fittings charged separately. Standard extruded half-round and ogee profiles in stock colours offer the shortest lead times and most competitive pricing. We supply trade accounts across the UK from our Chelmsford base, with next-day delivery available on most in-stock lines.
Sustainability and Recyclability
The construction industry is under increasing pressure to reduce embodied carbon and improve material circularity. Aluminium is one of the few building materials that genuinely supports both objectives.
Infinite Recyclability
Aluminium can be recycled repeatedly without any loss of material quality. Unlike plastics, which degrade with each recycling cycle, aluminium returned to the smelter produces metal identical to primary aluminium. Crucially, the energy required to recycle aluminium is only around 5 per cent of that needed to produce it from raw bauxite ore. This means that aluminium guttering removed at end of life has a significant residual value and will almost certainly be recycled rather than going to landfill.
Long Service Life Reduces Replacement Impact
Sustainability is not only about what happens at end of life. A uPVC gutter system replaced every 20 years over a building's 60-year lifespan requires three full installations, each with its own manufacturing energy and material impact. An aluminium system installed once and lasting 60 years produces a fraction of that total impact, even accounting for the higher energy cost of the initial aluminium production.
BREEAM and Specification
Aluminium guttering's recyclability, durability, and fire classification contribute positively to BREEAM credits in the Materials category. For projects targeting BREEAM Very Good or Excellent ratings, specifying aluminium rainwater systems with a declared recycled content and end-of-life recyclability statement is straightforward and well-supported by most manufacturers.
Ready to Specify Your Aluminium Guttering System?
Our team at Online Metal Store Ltd has over 12 years of experience helping builders, architects, and homeowners specify the right aluminium rainwater system for their project.
Frequently Asked Questions About Aluminium Guttering
How long does aluminium guttering last?
A properly installed aluminium guttering system will typically last 40 to 60 years. Marine-grade aluminium with a quality powder coating often carries a 50-year manufacturer guarantee. This compares very favourably with uPVC, which generally needs replacing after 20 to 25 years. The long lifespan also reduces the environmental impact of the system over the lifetime of the building.
Is aluminium guttering better than plastic?
For most UK applications, yes. Aluminium guttering is stronger, significantly longer-lasting, fully recyclable, and far more resistant to cracking in cold weather. It costs more upfront than plastic but delivers much lower lifetime costs and a more refined, professional appearance. The only scenario where plastic might be preferred is a very tight initial budget on a property that is likely to be sold or redeveloped within a few years.
Can I install aluminium guttering myself?
Competent DIYers can install sectional aluminium guttering, particularly snap-fit systems, which work in a very similar way to uPVC. The key skills required are accurate fall calculation, correct sealant application, and safe working at height. For box gutters, large commercial runs, or bespoke fabrications, professional installation is strongly recommended to ensure correct falls, watertight joints, and long-term performance.
What size aluminium gutter do I need?
For a standard UK semi-detached home, a 112mm half-round or 100mm ogee profile is usually sufficient. Larger roof areas or steep pitches require a deeper, wider profile such as a 125mm deep-flow or box section. Always calculate the roof catchment area and expected rainfall intensity before specifying a size. If in doubt, contact our team and we will help you size the system correctly for your project.
Does aluminium guttering need painting?
No. Aluminium guttering is supplied with a factory-applied polyester powder coat finish that requires no painting and very little routine maintenance. The coating is baked onto the surface under high heat, producing a finish that is far more durable than a site-applied paint. If you later wish to repaint, use a suitable metal primer followed by an exterior-grade paint in any RAL colour.
How much does aluminium guttering cost in the UK?
For a typical three-bedroom semi-detached house requiring around 20 to 30 metres of guttering, expect to pay between £900 and £1,500 for materials and professional installation. This includes standard profiles, fittings, and removal of the old system. Bespoke or commercial installations vary considerably by specification, height, and access requirements. Contact Online Metal Store Ltd for a detailed project quotation.
Is aluminium guttering suitable for coastal properties?
Yes, absolutely. Marine-grade aluminium with a heavy-duty powder coat finish performs exceptionally well in coastal and high-salinity environments. Specify A2-grade stainless steel fixings alongside the guttering to avoid bi-metallic corrosion. Standard zinc-plated fixings will fail rapidly in salt air and should be avoided on coastal projects entirely.
What profiles are available in aluminium guttering?
The most common profiles in the UK are half-round, ogee (Victorian and moulded), box section, and beaded half-round deep-flow. Heritage properties often use cast aluminium to replicate the look of traditional cast iron while benefiting from modern aluminium's lighter weight and superior corrosion resistance. Contemporary builds typically favour clean-lined box or half-round extruded profiles. Custom profiles can also be fabricated for specific architectural requirements.
Can aluminium guttering be used on flat roofs?
Yes. Aluminium box gutters are the standard specification for flat-roof drainage on extensions, commercial buildings, and modern residential developments. They integrate cleanly with flat-roof membranes and parapet coping systems, and can be fabricated to virtually any custom cross-section and length to suit specific architectural details. Our box gutter case study provides a detailed example of this type of installation.
How do I fix a leaking aluminium gutter joint?
Dry the joint area thoroughly, removing any old or failed sealant with a utility knife and cleaning the aluminium surface with isopropyl alcohol. Apply a bead of fresh low-modulus silicone sealant to the joint, smooth it with a wetted finger, and allow it to cure fully before rain exposure. The critical thing is to use low-modulus silicone specifically: standard silicone hardens over time and cracks as the metal moves seasonally.
