Galvanised Steel Angle – 2400mm Length

When you need a strong, reliable right-angle section that can sit outside in the rain and not rust to pieces within a couple of years, galvanised steel angle is the answer. It is one of those products that does a dozen different jobs on a building site or in a workshop, and it does all of them well.

Our galvanised steel angle is supplied in 2400mm lengths with a choice of six width configurations and two thicknesses. Whether you are a builder in Chelmsford framing out cladding supports, a roofer in Colchester fixing fascia backing angles, or a fabricator in East London making up brackets and frames, this is a workhorse product that earns its place on every job.

Product Overview

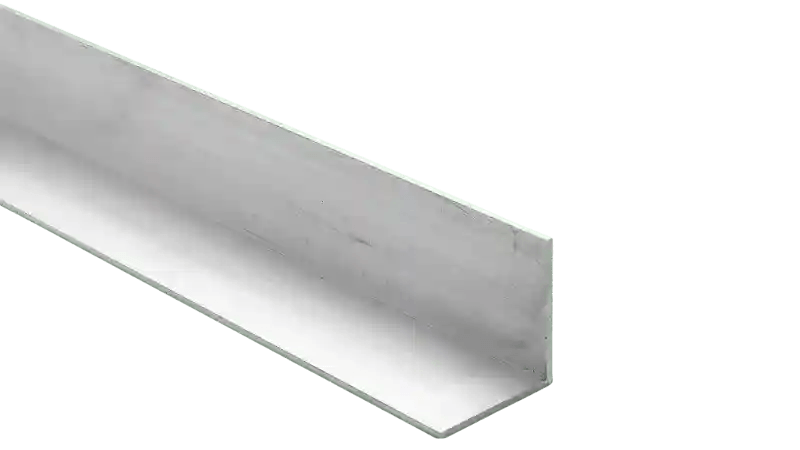

A galvanised steel angle is an L-shaped metal section formed to a precise 90-degree profile. The galvanising process coats the entire surface in zinc, which creates a durable barrier against rust and corrosion. That zinc coating is what makes galvanised angle the go-to choice for any application where the steel will be exposed to moisture, whether that is outdoor construction, roofline support work, or external cladding details.

We stock these angles in 2400mm lengths, which is a practical size for the majority of construction and fabrication work. You can choose between 1mm and 2mm thickness depending on the load and application, and six width options ranging from 25mm x 50mm up to 100mm x 100mm. That range covers everything from light-duty trim work through to heavier structural support. If you are using these angles to support roofline products, they pair well with our aluminium fascia systems and aluminium coping systems where a steel backing angle is needed behind the aluminium profile.

Online Metal Store Ltd supplies these galvanised angles from our base in Chelmsford, Essex. We keep stock across all sizes and ship nationwide. If you are local to Essex, you are welcome to collect from our Southend Road facility.

Key Benefits

Zinc coated for lasting corrosion protection

The galvanising process applies a zinc coating across every surface of the steel, including cut edges in the case of hot-dip galvanising. This creates a tough, self-healing barrier that prevents rust even in exposed outdoor environments. In the UK, where rain, frost and damp air are a daily reality for most of the year, that protection is not optional. It is essential.

Two thickness options for different jobs

Not every application needs the same amount of steel. Our 1mm thickness is ideal for lighter duties: fascia backing angles, trim support, edge protection on renders and cladding panels, and general fabrication where weight needs to be kept down. The 2mm option steps up for heavier work: structural framing, load-bearing brackets, cladding rail supports on commercial builds, and any situation where the angle needs to take a meaningful load or resist impact.

Six width configurations

We offer equal-leg angles in 50x50mm, 75x75mm and 100x100mm, plus unequal-leg options in 25x50mm, 75x50mm and 100x75mm. Equal-leg angles suit symmetrical applications like edge trims and square framing. Unequal-leg angles are useful where you need a wider face on one side, for instance when the angle is being used as a fixing rail behind a fascia board where the back leg fixes to the wall and the front leg supports the fascia.

Easy to cut, drill and weld

Galvanised steel angle cuts cleanly with a hacksaw, angle grinder or cold saw. It drills without any difficulty using standard HSS bits, and it welds with standard MIG or arc equipment. If you are cutting or drilling on site, just touch up the exposed steel edge with a coat of zinc-rich paint to maintain the corrosion protection at those points.

Practical 2400mm length

At 2.4 metres, each angle is long enough to be useful but short enough to transport and handle easily. You can fit a stack of them in the back of a van without trouble. On site, they are manageable for one person to carry and position, which matters when you are working on a ladder or scaffold.

Made in the UK, delivered fast

We hold stock of all sizes at our facility in Chelmsford, Essex. Orders are dispatched quickly across the country. Whether you are working on a job in Brentwood, a project in Central London, or a build up in the Midlands, we will get the steel to you.

Technical Specifications

Material: Mild steel with galvanised zinc coating

Profile: L-shaped, formed to 90 degrees

Length: 2400mm

Thickness Options: 1mm, 2mm

Width Options (equal leg): 50mm x 50mm, 75mm x 75mm, 100mm x 100mm

Width Options (unequal leg): 25mm x 50mm, 75mm x 50mm, 100mm x 75mm

Finish: Galvanised (zinc coated)

Suitable For: Roofline support, cladding framing, edge protection, structural brackets, general fabrication

Can Be Cut, Drilled and Welded: Yes. Touch up exposed edges with zinc-rich paint after cutting.

Manufactured In: United Kingdom

Choosing the Right Size and Thickness

With twelve variants on offer, picking the right galvanised steel angle comes down to two questions: what width do you need, and how thick does it need to be?

Choosing the width

• 25mm x 50mm is a compact, lightweight angle suited to small-scale trim work, edge protection on render boards, and light fabrication jobs where a low profile is needed.

• 50mm x 50mm is a versatile, general-purpose equal-leg angle. It works well as a fascia backing support, a framing member in light steelwork, and a trim or edge protector on a wide range of building applications.

• 75mm x 50mm and 75mm x 75mm give you more material to work with. The unequal-leg 75x50 is a popular choice as a cladding support rail or fascia fixing angle where the wider leg goes against the wall. The equal-leg 75x75 suits heavier-duty framing and structural support.

• 100mm x 75mm and 100mm x 100mm are the largest in the range. Use these for heavy structural work, large fascia or coping backing supports, and any application where the angle needs to span a gap or carry a significant load.

Choosing the thickness

The 1mm option is well suited to fascia backing, light trim support, cladding edge details and general fabrication where structural load is not the primary concern. It is lighter, easier to cut on site and costs less per length. The 2mm option is the right choice when the angle needs to carry weight, resist impact, or act as a structural member. Cladding rail supports, heavy-duty brackets, load-bearing frames and any commercial specification that calls for a minimum gauge will typically need the 2mm variant.

Where Galvanised Steel Angle Is Used

Fascia and soffit backing support

One of the most common uses we see is as a backing angle behind aluminium fascia boards and soffit panels. The galvanised angle is fixed to the wall or rafter ends, and the aluminium fascia clips or screws onto it. This gives the fascia a solid, straight fixing surface and takes the structural load off the aluminium itself. Our aluminium fascia range is designed to work with a backing angle of this type, and the 50x50mm or 75x50mm sizes are the most popular for domestic fascia installations across Essex and the South East.

Coping system support

On parapet walls, galvanised steel angles are used to support aluminium coping systems. The angle is fixed along the top of the wall, and the coping clips onto it. This creates a secure, wind-resistant detail that meets the requirements of BS 5534 and coping system manufacturers' specifications. Browse our aluminium flat copings and aluminium sloping copings to see the systems these angles support.

Cladding and rainscreen framing

On commercial buildings, galvanised steel angles form part of the subframe that supports cladding panels and rainscreen systems. The angle sections are fixed to the structural wall and the cladding is attached to the outward-facing leg. The galvanised finish is critical here because the subframe is hidden behind the cladding and needs to resist corrosion for the full life of the building without access for maintenance.

Edge protection and render trims

Where external render meets a corner, a galvanised angle provides a clean, straight edge and protects the render from impact damage. This is a very common detail on new builds and renovation projects across the UK. The 25x50mm and 50x50mm sizes are typically used for this application.

General fabrication and workshop use

Beyond construction, galvanised steel angle is a staple in fabrication workshops for making brackets, frames, shelving supports, gate fixtures and countless other items. The L-profile gives inherent rigidity, and the galvanised finish means the finished piece can be used outdoors without additional treatment. If you need fasteners to match the galvanised finish, our colour coded fasteners are available in a range of finishes to suit.

Frequently Asked Questions

What is a galvanised steel angle used for?

Galvanised steel angle is used across a wide range of construction and fabrication applications. Common uses include fascia and soffit backing support, coping system fixing rails, cladding subframe members, render edge trims, structural brackets and general workshop fabrication. The galvanised zinc coating makes it suitable for both indoor and outdoor use, as it provides long-term corrosion resistance without the need for additional painting or treatment.

What thickness galvanised angle do I need?

For light-duty work such as fascia backing, trim support and edge protection, 1mm thickness is usually sufficient. For heavier applications including cladding rail supports, structural brackets, load-bearing frames and any specification that calls for a minimum gauge, choose the 2mm option. If you are unsure, the 2mm is the safer choice as it covers a wider range of structural requirements.

Can galvanised steel angle be used outside?

Yes. That is precisely what the galvanised zinc coating is designed for. It creates a durable barrier against rust and corrosion, even in wet, exposed UK conditions. Galvanised steel angle is widely used on exterior construction work including roofline support, cladding framing and external structural brackets. If you cut or drill the angle on site, apply a coat of zinc-rich paint to the exposed edges to maintain full corrosion protection.

What is the difference between 1mm and 2mm galvanised angle?

The primary difference is load-bearing capacity and rigidity. A 1mm angle is lighter, easier to cut, and well suited to non-structural applications like fascia backing and light trim support. A 2mm angle is heavier, stiffer and capable of handling greater loads, making it the right choice for structural work, cladding framing and heavy-duty brackets. The 2mm option also resists impact and deformation better than the thinner variant.

Can you cut galvanised steel angle on site?

Yes. Galvanised steel angle cuts cleanly with a hacksaw, angle grinder or cold saw. It can also be drilled with standard HSS drill bits and welded using MIG or arc welding equipment. After cutting or drilling, touch up the exposed steel edge with zinc-rich paint to maintain corrosion protection at those points.

Is galvanised angle suitable for roofing applications?

Yes. Galvanised steel angle is commonly used in roofing and roofline applications as a backing support for aluminium fascia, soffit and coping systems. It provides a rigid, corrosion-resistant fixing surface that holds the aluminium profiles securely and keeps them straight over long runs. It is also used as a support angle for gutter brackets and other roofline accessories.

Galvanised Steel vs Stainless Steel vs Mild Steel Angle: Which Should You Use?

Galvanised steel angle

The practical, cost-effective choice for the vast majority of UK construction and fabrication work. The zinc coating provides excellent corrosion resistance at a fraction of the cost of stainless steel. It is easy to cut, drill and weld. Available in a wide range of sizes. Suitable for outdoor use in all normal UK weather conditions. The standard choice for fascia backing, cladding framing, structural brackets and general fabrication.

Stainless steel angle

Superior corrosion resistance, particularly in marine, chemical or food-processing environments. Considerably more expensive than galvanised steel. Harder to cut and weld. Typically specified where the application demands a higher level of corrosion resistance than galvanising can provide, or where hygiene requirements dictate the use of stainless steel. Overkill for most standard construction and roofline applications.

Untreated mild steel angle

The cheapest option upfront, but it will rust when exposed to moisture. Needs to be painted, powder coated or otherwise treated for any external application. Suitable for indoor use in dry environments, or where the finished item will receive a protective coating. Not recommended for outdoor construction or roofline work without additional treatment, as bare mild steel corrodes quickly in UK conditions.

For most building and fabrication work in the UK, galvanised steel angle is the right balance of cost, durability and practicality. It arrives ready to use, it handles British weather without any additional treatment, and it costs a fraction of the stainless alternative.

Standards and Compliance

Our galvanised steel angles are manufactured to meet UK quality standards for construction steel. The galvanising process conforms to the requirements of BS EN ISO 1461 (hot-dip galvanised coatings on fabricated iron and steel articles), which specifies the minimum zinc coating thickness and adhesion requirements. For structural applications, the base steel is produced in accordance with BS EN 10025 (hot-rolled structural steel). Using standards-compliant materials protects the specification, the building and the people who use it.
