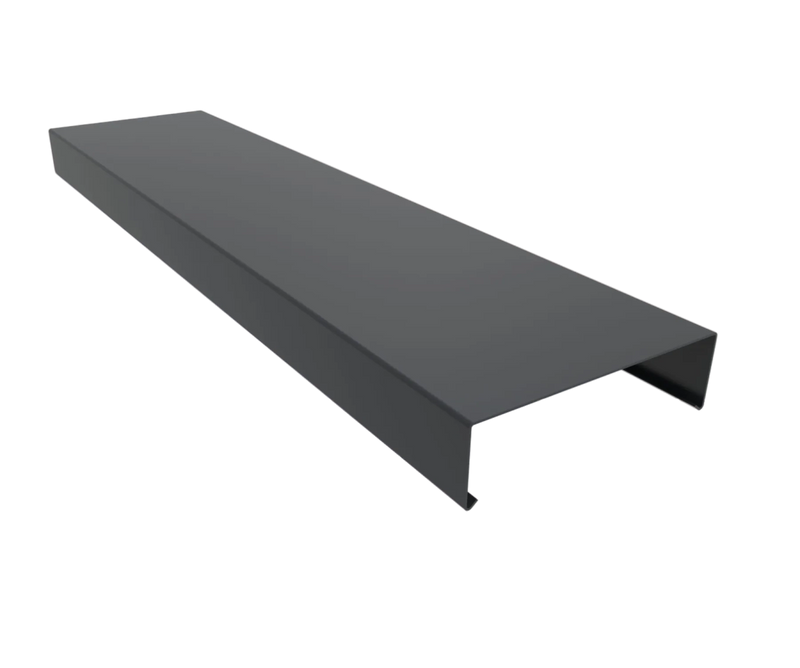

2mm Aluminium Flat Coping – 3m Length | 75mm External Leg

Water getting into the top of a parapet wall is one of the most common causes of damp, spalling brickwork and structural decay on buildings across the UK. Once moisture penetrates the core of the wall, frost cycles do the rest, cracking mortar joints and blowing the face off bricks from the inside out. On domestic extensions in Chelmsford, commercial builds across Brentwood and Colchester, and housing developments throughout the South East, an unprotected or poorly capped parapet wall will deteriorate faster than almost any other part of the building envelope.

Aluminium flat coping solves the problem permanently. It caps the full width of the wall, throws water clear of both faces via a drip return on the external leg, and locks in place on concealed brackets so there are no screw holes through the top surface to let water back in. It is a simple, proven detail that protects the wall for 25 years or more.

Product Overview

The 2mm aluminium flat coping from Online Metal Store Ltd is supplied in 3 metre lengths with a 75mm external leg. Available in 29 width options from 185mm to 885mm (in 25mm increments), the coping is made to fit your exact wall thickness. Each length is custom fabricated at our Chelmsford, Essex workshop and powder coated in any RAL colour before dispatch.

The coping uses a concealed fixing system. Heavy duty brackets are screwed to the top of the wall at regular centres, and the coping clicks onto the brackets from above with no visible fixings on the finished surface. This secret fix method eliminates screw holes that could allow water penetration and keeps the coping line clean. For wider walls (over 400mm), the 3mm aluminium flat coping provides additional rigidity. For walls that require a fall to shed water, see the aluminium sloping coping range.

Key Benefits

Weathertight Protection for Parapet Walls

The coping caps the full width of the wall, with the 75mm external leg dropping down both faces to throw water clear. A drip return at the base of each leg prevents water from tracking back under the coping and into the wall. This keeps the wall core dry, prevents frost damage and eliminates the staining that unprotected parapets develop over time.

Concealed Fixing System

The secret fix bracket system means no screws penetrate the top surface of the coping. Each bracket is fixed to the wall, and the coping clicks into place from above. This removes the single biggest weakness in traditional fixed coping systems, where screw holes become entry points for water. It also allows the coping to expand and contract with temperature changes without bowing or distorting.

29 Width Options for Any Wall Thickness

With sizes from 185mm to 885mm, the coping is made to fit your wall precisely. Measure the total wall width including any render, insulation or cladding, add approximately 60mm for the overhang on both sides, and select the closest size. This means a proper fit on everything from a single skin garden wall to a heavily insulated commercial parapet.

Powder Coated in Any RAL Colour

Every coping length is colour matched before dispatch. Whether you need Anthracite Grey RAL 7016 to match your window frames, Black RAL 9005 for a commercial unit, or a bespoke heritage colour for a period property, the finish is consistent across every coping length, corner and stopend in the system.

3 Metre Lengths for Fewer Joints

Each length covers 3 metres of wall, reducing the number of joints in the coping run. Fewer joints means fewer potential leak points and a cleaner, more continuous line along the top of the wall.

Corrosion Resistant for the UK Climate

Aluminium does not rust. The 2mm gauge provides structural rigidity, and the polyester powder coat adds a further barrier against UV, salt spray and the prolonged damp that buildings across Essex, Kent and the Home Counties face year round.

UK Manufactured with Fast Turnaround

Every coping length is fabricated at our workshop in Chelmsford, Essex. We manufacture to order, control quality from raw material to dispatch, and keep lead times short.

Technical Specifications

Material: Aluminium

Thickness: 2mm

Length: 3000mm (3m)

External Leg: 75mm

Profile: Flat coping

Available Widths: 185mm, 210mm, 235mm, 260mm, 285mm, 310mm, 335mm, 360mm, 385mm, 410mm, 435mm, 460mm, 485mm, 510mm, 535mm, 560mm, 585mm, 610mm, 635mm, 660mm, 685mm, 710mm, 735mm, 760mm, 785mm, 810mm, 835mm, 860mm, 885mm

Fixing System: Concealed secret fix brackets (supplied with coping)

Finish: Polyester powder coated in any RAL colour

Manufactured: Chelmsford, Essex, United Kingdom

Price: From £74.88 ex. VAT (£89.86 inc. VAT)

Choosing the Right Coping Width

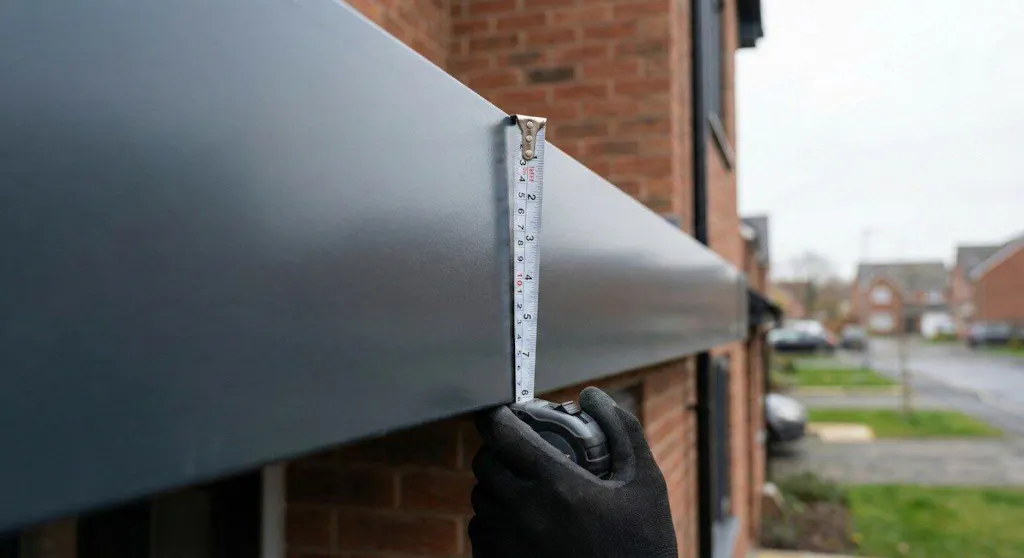

Measure the total width of your wall from the outer face of the external finish to the outer face of the internal finish. Include any render, insulation, cladding or cavity. Add approximately 60mm (30mm overhang on each side) to allow the coping to sit proud of the wall with enough clearance for the drip return to work.

• 185mm to 310mm: Single skin garden walls, thin boundary walls, and narrow parapets on domestic extensions.

• 335mm to 510mm: Standard cavity walls with partial fill insulation, typical of domestic new builds and extensions across Essex and the South East.

• 535mm to 710mm: Full fill cavity walls with external insulation, common on energy efficient new builds and commercial properties.

• 735mm to 885mm: Heavily insulated commercial parapets, EWI systems, and wide boundary walls. For widths above 400mm, consider upgrading to 3mm thickness for added rigidity.

How to Install Aluminium Flat Coping

Lay a DPC (damp proof course) membrane along the top of the wall before any brackets are fixed. This provides a secondary waterproofing layer beneath the coping and protects the wall core if any moisture does find its way past the joints over time.

Fix the concealed brackets to the top of the wall at approximately 600mm centres using appropriate masonry fixings. Apply the EPDM seal tape (supplied with every 10 metres of coping ordered) to the top of each bracket to create a cushioned, watertight bed for the coping to sit on.

Click the coping lengths onto the brackets from above. Where two lengths meet, the joint should be sealed with colour coded sealant and, where required, secured with colour coded fasteners for a colour matched, weathertight connection. At corners, use factory formed 135 degree corners for clean, consistent angles. At the end of each run, finish with a stopend upstand.

Where Aluminium Flat Coping Is Used

Flat Roof Parapet Walls

On domestic and commercial buildings with flat roofs, the parapet wall rises above the roof line and needs a weathertight cap. Aluminium flat coping provides a modern, clean finish that protects the wall from water ingress while complementing the flat roofline. This is the most common application on new build extensions and apartment blocks across Chelmsford, Basildon, Southend and the wider South East.

Boundary and Garden Walls

Freestanding boundary walls, garden walls and retaining walls all benefit from a coping cap. Without protection, the mortar joints at the top of the wall absorb water and deteriorate. A powder coated aluminium coping keeps the wall dry and adds a finished appearance that concrete or stone copings cannot match for colour accuracy.

Commercial and Industrial Buildings

On commercial units, retail parks, schools and office blocks, aluminium coping is standard specification. The 3 metre lengths, 29 width options and any RAL colour coating make it adaptable to any wall thickness and any design brief. For a real world example of how the coping system performs on a commercial project, see the aluminium coping case study.

New Build Housing Developments

Volume housebuilders across the South East specify aluminium flat coping as part of the standard parapet wall detail on dormer windows, front elevation parapets and terrace dividing walls. The concealed fixing system speeds up installation and the powder coated finish eliminates the need for site painting.

Period Property Refurbishment

On older properties where stone copings have failed or where the original parapet was left unprotected, aluminium coping provides a lightweight, durable replacement. Powder coated in a heritage RAL colour, it sits discreetly on the wall without the weight that would concern a structural engineer working on an ageing building in a conservation area across Colchester, Billericay or Maldon.

Frequently Asked Questions

What is aluminium flat coping used for?

Aluminium flat coping is a protective cap fitted to the top of parapet walls, boundary walls and any freestanding wall that is exposed to rain. It prevents water from penetrating the top of the wall, throws rainwater clear of both faces via drip returns on the external legs, and provides a clean, modern finish to the wall top.

How wide should aluminium coping be for my wall?

Measure the total wall width including all finishes (render, insulation, cladding) and add approximately 60mm for the overhang on both sides. This gives you the coping width you need. This product is available in 29 sizes from 185mm to 885mm, so there is a size to fit virtually any wall thickness.

What is the difference between flat coping and sloping coping?

Flat coping has a level top surface, giving a modern, contemporary appearance. Sloping coping has a slight fall across its width to encourage water to run off to one side, which can be beneficial in exposed locations or on wider walls where standing water might otherwise pool. Both types use the same concealed fixing system. See the aluminium sloping coping range for the angled alternative.

How is aluminium coping fixed to a parapet wall?

Concealed brackets are screwed to the top of the wall at 600mm centres. An EPDM seal tape is applied to each bracket, then the coping clicks onto the brackets from above. No screws penetrate the top surface of the coping, so there are no holes for water to get through and the finished surface stays clean.

Is aluminium coping better than stone coping?

Aluminium coping is lighter, more consistent, faster to install, and does not crack or spall over time. Stone copings absorb water, are heavy, require mortar bedding, and can crack in frost. For any project where a modern finish, long service life and low maintenance matter, aluminium is the better choice. Stone may still be preferred on listed buildings where the planning authority requires it.

What thickness aluminium coping do I need?

2mm is the standard thickness for coping widths up to approximately 400mm. For wider walls (above 400mm), 3mm provides additional rigidity and resistance to wind uplift. The 3mm aluminium flat coping is available in the same range of widths and colours.

Aluminium vs Stone vs Lead Coping

Aluminium

Lightweight, corrosion resistant, available in any RAL colour, and fitted with a concealed fixing system that eliminates screw holes in the top surface. Aluminium coping does not absorb water, does not crack in frost, and lasts 25 years or more with no maintenance. For the majority of domestic and commercial projects in the UK, aluminium is the best all round choice.

Stone / Concrete

Stone and concrete copings carry a traditional look and substantial weight. They absorb water over time, are prone to frost damage, and require mortar bedding which can crack and allow water ingress. Installation is slower and more labour intensive. Stone may still be specified on listed buildings or where planning conditions require a traditional material.

Lead

Lead has been used as a coping cover for centuries, particularly on churches and listed buildings. It is effective but expensive, heavy, and increasingly subject to theft. Lead also stains the wall below over time. For new build and commercial projects, aluminium provides equivalent weather protection without the cost, weight or staining issues. Browse the full aluminium flat coping collection to see all available options.

Part of a Complete Coping System

The 3 metre flat coping is the main length in the system. Ordering every component from a single supplier ensures consistent colour, profile and fixing compatibility. The complete flat coping range includes:

• 2mm Flat Coping 3m (75mm Leg) – this product

• 2mm Flat Coping 1m (75mm Leg) – shorter length for infill pieces

• 3mm Flat Coping 3m (75mm Leg) – heavier gauge for wider walls

• 135° Corner (75mm Leg) – preformed corner piece

• Colour Coded Sealant – joint sealing between coping lengths

• Colour Coded Fasteners (Timber) – matching fixings for brackets

For the sloping coping alternative, see the full aluminium sloping coping collection. For inspiration on how the coping system looks on a completed project, see the aluminium coping case study.

Standards and Compliance

Aluminium copings on flat roof parapets should be installed in accordance with BS 6229:2018 which covers flat roofs with continuously supported flexible coverings. The powder coat finish is applied in line with BS EN 12206-1 for powder organic coatings on aluminium. Powder coated aluminium achieves a fire classification of A2-s1,d0 under BS EN 13501-1, making it suitable for use on buildings of any height including high rise residential projects. On NHBC registered sites, the coping system should meet the requirements of Chapter 7.1 (drainage) and Chapter 7.2 (roofing). Getting this detail right protects the warranty, the building and the people inside it.
