4mm Aluminium Coping – Bracket
4mm Aluminium Coping – Bracket
Aluminium flat coping looks simple from the outside: a neat profile sitting on top of a parapet wall, dressed in the correct RAL colour, sealed at the joints and corners. What you do not see is the bracket underneath, fixed to the top of the wall, holding the entire coping run in place against wind pressure that on an exposed site or a building of any height can be substantial. Get the bracket wrong, and you have a coping system that works perfectly in good weather and starts to rattle, lift or fail the first time a storm rolls in off the North Sea or up the Thames Estuary. Get it right, and the coping sits tight for the life of the building without ever needing to be touched.

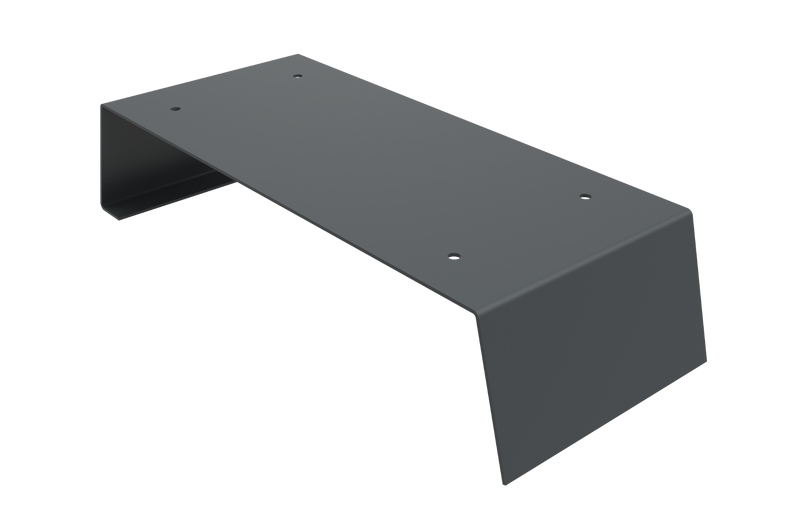

This 4mm aluminium coping bracket is the concealed fixing component for the 2mm aluminium flat coping system. It is fixed to the top of the parapet wall before the coping is installed, and the coping profile clicks or presses down onto the bracket to create a secure, hidden fixing with no fasteners visible on the face or top surface of the installed coping. Manufactured in Chelmsford, Essex as part of the Online Metal Store Ltd coping system, it is the component that gives the whole installation its structural integrity.
Product Overview
The 4mm aluminium bracket is the correct fixing bracket for the 2mm aluminium flat coping range. It is fabricated from 4mm aluminium, which is thicker than the 2mm coping profile itself, providing a rigid fixing base that resists the peel and uplift forces generated by wind pressure on a parapet. The bracket is fixed to the top of the wall using appropriate fixings for the substrate, masonry anchors for brick and block parapets, and structural fixings for concrete or steel curb constructions. The 2mm flat coping lengths are then pressed or clipped down onto the installed brackets, capturing the coping profile securely without any fastener penetrating the top or face of the coping. This concealed fixing approach is what the industry refers to as a secret fix system.
Because the bracket sits inside the coping profile rather than on top of it, the finished installation has no visible fixings, no holes in the coping surface, and no penetrations that could become entry points for water. The bracket also allows the coping to move slightly with thermal expansion and contraction cycles without the stress concentrations that occur when a coping is bolted hard to a wall. For the 3mm coping system, the 5mm aluminium coping bracket is the correct specification, as it provides the greater fixing resistance appropriate for the heavier gauge coping and more demanding site conditions where 3mm is typically used.
Key Benefits
Concealed Fixing with No Penetrations in the Coping Face
The secret fix principle is the single most important advantage of this bracket system over a direct-fixed coping approach. When a coping is bolted or screwed directly through its top surface to the wall below, every fixing hole is a potential water entry point. The washer and sealant at each fastener will eventually degrade, and the fastener itself is under repeated stress from thermal movement in the coping. With the 4mm bracket, the coping presses onto the bracket from above and is held mechanically without any penetration through the coping surface. The watertight integrity of the top surface is preserved across the full life of the installation.
Allows for Thermal Movement Without Stress
Aluminium expands and contracts with temperature changes. On a fully exposed parapet, the temperature differential between a hot summer day and a cold winter night in Essex or across the South East can be 40 degrees or more. A 3m length of aluminium flat coping will expand and contract by several millimetres across that range. A bracket-fixed system accommodates this movement by allowing the coping to slide fractionally over the bracket rather than being constrained at fixed points. This prevents the bowing, creaking and joint failure that direct-fixed copings develop over time as thermal stress accumulates.
Heavier Gauge Than the Coping for Rigid Fixing
At 4mm, the bracket is twice the thickness of the 2mm coping it supports. This is intentional. The bracket needs to be rigid enough to resist the peel forces generated when wind pressure acts on the underside of the coping overhang, while the coping itself can be lighter because it is supported rather than self-supporting. The 4mm gauge gives the bracket the stiffness to hold the coping firmly to the wall without the bracket itself flexing under load.
Aluminium-to-Aluminium: No Bi-Metallic Corrosion
Using an aluminium bracket with aluminium coping is the correct specification for long-term corrosion resistance. When two different metals are in contact in the presence of moisture, bi-metallic corrosion accelerates the degradation of the less noble metal. On a coastal site in Essex or Kent, where salt-laden air is consistently present, using a steel bracket with an aluminium coping would create exactly those conditions. An aluminium bracket eliminates that risk entirely, maintaining the corrosion resistance of the full system across its service life.
Manufactured in Chelmsford for Full System Compatibility
The 4mm bracket is fabricated at the Online Metal Store Ltd facility in Chelmsford to the same specification as the 2mm flat coping lengths, corners, stopends and other accessories in the same range. Ordering the brackets alongside the rest of the coping system means everything is manufactured to compatible dimensions and arrives together, ready to install without site modifications.
Technical Specifications
Material: 4mm grade aluminium
Type: Concealed / secret fix coping bracket
Compatible Coping: 2mm Aluminium Flat Coping range (all leg sizes)
Fixing Method: Fixed to top of parapet wall; coping presses / clips onto bracket from above
Substrate: Masonry (brick/block), concrete, structural steel (appropriate fixings required per substrate)
Recommended Bracket Centres: Maximum 1000mm centres on standard domestic / sheltered applications; closer centres on exposed sites or as recommended by structural engineer for wind uplift
Brackets per 3m Length: Minimum 3 per 3m run (one at each end plus one intermediate); adjust for site exposure and wind load requirements
Country of Manufacture: United Kingdom (Chelmsford, Essex)
4mm or 5mm: Which Bracket for Your Coping System?
The bracket gauge must match the coping gauge. The two options in the Online Metal Store Ltd range are:
-
4mm Aluminium Coping Bracket (this product): use with the 2mm aluminium flat coping system. Correct for domestic extensions, garages, outbuildings, residential boundary walls and light commercial applications where 2mm coping is the specified gauge.
-
5mm Aluminium Coping Bracket: use with the 3mm aluminium flat coping system. Correct for commercial buildings, NHBC new-build projects, exposed and coastal sites, and any project where the structural or architectural specification calls for 3mm coping.
Do not mix bracket gauges with coping gauges. A 5mm bracket with 2mm coping will create a dimensional mismatch at the fixing interface. A 4mm bracket with 3mm coping on an exposed commercial site is undersized for the wind loads the system may need to resist. Match bracket to coping gauge and you will have a system that is correctly specified from the first fixing to the last joint.
How Many Brackets Do You Need?
Under-ordering brackets is one of the most common mistakes on a coping installation. The instinct is to order one bracket per length and rely on the corner pieces and stopends to support the ends. That is not sufficient. For each 3m flat coping length, you need a minimum of three brackets: one at the start of the run, one at or near the end, and at least one intermediate. For a standard 3m length at maximum 1000mm centres, that means a bracket at approximately 0mm, 1000mm and 2000mm from the start of the run, with the third bracket bringing you to within 1000mm of the next fixing position or the corner/stopend.
-
1m lengths: minimum 2 brackets per length (one at each end), closer if site is exposed.
-
2m lengths: minimum 2 brackets per length with centres not exceeding 1000mm, so 2 is the minimum for a 2m run.
-
3m lengths: minimum 3 brackets per length with centres not exceeding 1000mm.
-
Exposed sites and elevated positions: reduce bracket centres to 750mm or less. On a building above 10m or on an open-aspect coastal site, wind uplift forces are significantly higher. Your structural engineer should advise on bracket centres where wind loading calculations have been carried out.
-
At corners and stopends: position a bracket within 150-200mm of each end of every coping run, including at every corner piece and stopend junction. The ends of a run are the points most vulnerable to wind-induced peel-back.
As a quick rule of thumb for ordering: divide the total linear metres of straight coping run by 0.9 and round up to get the number of brackets required for a 1000mm centre installation. For example, a parapet with 18 linear metres of coping run needs a minimum of 20 brackets.
How to Install the 4mm Coping Bracket
Lay out all coping components before starting to fix: straight lengths, corner pieces, stopends and brackets. Establish the bracket positions along the run using a chalk line or builder's line on the top of the parapet wall. This is particularly important on long commercial runs where a misaligned bracket position accumulates across the run length and creates an alignment problem at the far end.
Fix each bracket to the top of the wall using fixings appropriate for the substrate. For masonry parapets, use corrosion-resistant masonry anchors of the correct size for the brick or block construction. For concrete parapets, use concrete anchors. For steel or timber curb substrates, use stainless steel or other corrosion-resistant fixings of appropriate gauge and embedment. Ensure each bracket is fixed flat to the wall top with no rocking or play before proceeding to the next position.
Once all brackets are fixed and alignment is confirmed, press the coping lengths down onto the brackets from above. The coping profile should engage the bracket and sit securely without any side-to-side movement. Apply colour coded sealant at every joint between lengths, at every corner and at every stopend before the adjacent component is pressed home. The sealant at each joint is the weathertight seal for the system and should be a continuous bead with no gaps. Fix the colour coded fasteners at the bracket positions through the coping profile to lock the system once the alignment is confirmed and sealant is applied.
Where the 4mm Coping Bracket Is Used
Domestic Flat Roof Extensions
Every 2mm flat coping installation on a domestic extension requires this bracket. On a standard rear extension in Chelmsford, Brentwood, Basildon or anywhere across Essex and the South East, the parapet wall will have between 8 and 20 linear metres of coping run, requiring between 10 and 24 brackets depending on the layout and exposure. The bracket is the component most commonly forgotten when buyers price up a domestic coping job: get it on the order alongside the lengths, corners and stopends, and the installation is complete from a single delivery.
Flat-Roofed Garages and Outbuildings
Garages, garden offices and outbuildings with flat roof parapets are a steady source of small coping system orders. The bracket requirement for a typical detached garage, with around 12 to 16 linear metres of parapet coping, runs to 14 to 20 brackets. Because these structures are often in exposed positions at the edge of a property rather than sheltered by adjacent buildings, the bracket centre guidance of 1000mm maximum is particularly relevant. A garage coping that lifts at the corners in the first storm is an immediate re-fix job and a difficult conversation with the client.
Residential Boundary Walls and Garden Structures
Aluminium flat coping is widely used on low boundary walls, screen walls, and raised landscaping features where a clean, low-maintenance cap is specified. On a boundary wall the bracket fixes to the top of the masonry and the coping sits over it, giving the wall a finished appearance with no exposed fixing hardware. The aluminium coping case study shows the full flat coping system installed on a completed UK project, demonstrating the clean finished result that the bracket-and-clip system achieves.
Light Commercial and New-Build Applications
Light commercial buildings with 2mm coping specifications and new-build houses on NHBC-registered developments where 2mm is the correct gauge for the parapet detail both use this bracket. On a new-build site in the Home Counties or across Essex, where a house type includes a flat-roofed garage or covered entrance with a parapet, the housebuilder will order the full 2mm flat coping system, including brackets, as a package for each unit. The aluminium sloping coping case study demonstrates how the full system is applied at scale on a residential development.
Frequently Asked Questions
What does the aluminium coping bracket actually do?
It provides the concealed fixing mechanism for the flat coping system. The bracket is fixed to the top of the parapet wall before the coping is installed. The coping lengths, corners and stopends are then pressed or clipped down onto the installed brackets from above, securing the coping to the wall without any fastener penetrating the top or face surface of the coping. This is what is meant by a secret fix or concealed fix system. The result is a clean, unbroken coping surface with no visible hardware, no holes, and no penetrations that could become water entry points.
How many brackets do I need for my project?
A minimum of three brackets per 3m coping length at 1000mm maximum centres, with a bracket at or within 200mm of every run end, corner and stopend position. For 1m and 2m lengths, a minimum of two brackets each. As a quick calculation: divide total linear metres of coping run by 0.9 and round up. So a 20-metre parapet run needs at least 23 brackets. On exposed sites or elevated buildings, reduce the centres and increase the bracket count accordingly.
What is the difference between the 4mm and 5mm bracket?
The 4mm bracket is the correct specification for the 2mm aluminium flat coping system. The 5mm bracket is the correct specification for the 3mm aluminium flat coping system. The 5mm bracket is heavier and provides greater fixing resistance, which is appropriate for the heavier gauge coping and the more demanding commercial and exposed-site conditions where 3mm is typically specified. Do not substitute a 4mm bracket for a 5mm on a commercial or exposed-site 3mm coping installation.
Can this bracket be used on masonry, concrete and steel substrates?
Yes. The 4mm aluminium bracket can be fixed to masonry, concrete, structural steel and timber substrates using the appropriate fixings for each. For masonry, use corrosion-resistant masonry anchors. For concrete, use concrete anchors. For steel or timber, use stainless steel or similarly corrosion-resistant fixings. The bracket itself is aluminium, which eliminates bi-metallic corrosion risk between bracket and coping. The fixings used to attach the bracket to the substrate must also be corrosion-resistant to avoid accelerated degradation at the fixing point.
Why is the bracket thicker than the coping?
The bracket is 4mm and the coping is 2mm because they have different structural roles. The bracket is fixed permanently to the wall and must resist the full wind uplift force acting on the coping over the life of the installation. It needs to be rigid. The coping, on the other hand, is a weather shield profile that sits on the bracket: it does not need to carry structural load in the same way. Making the bracket heavier than the coping is correct engineering for this system, and it is why a 4mm bracket is paired with 2mm coping rather than a bracket of the same gauge.
Part of a Complete 2mm Flat Coping System
The 4mm bracket is the fixing component that every 2mm flat coping installation needs. Order it alongside the coping lengths, corners, stopends and accessories from the same source to ensure system compatibility, consistent colour, and a single delivery. The full 2mm aluminium flat coping system with 75mm external leg includes:
-
2mm Aluminium Flat Coping 90 Degree Corner | 75mm External Leg
-
2mm Aluminium Flat Coping 135 Degree Corner | 75mm External Leg
-
2mm Aluminium Flat Coping - Closed Stopend | 75mm External Leg
-
2mm Aluminium Flat Coping - Stopend Upstand | 75mm External Leg
-
2mm Aluminium Flat Coping - 90 Degree T-Junction | 75mm External Leg
-
4mm Aluminium Coping Bracket (this product)
For the complete range overview including 3mm flat coping, sloping coping and all accessories, visit the Aluminium Flat Copings collection page and the Aluminium Copings overview page. For 3mm flat coping installations, use the 5mm Aluminium Coping Bracket instead.
Standards and Compliance
The fixing of aluminium parapet coping systems in the UK is governed by BS 6229:2018 - Flat Roofs with Continuously Supported Flexible Waterproof Coverings, which sets out the requirements for parapet and edge detailing on flat roofs. Bracket spacing, fixing substrate requirements and wind uplift resistance are all within the scope of parapet coping specification under this standard. Where a structural engineer has been engaged for wind loading calculations, bracket centres should be confirmed against those calculations before installation.
For projects where wind loading is a formal design consideration, the relevant structural design standard is BS EN 1991-1-4 (Eurocode 1: Wind Actions). On exposed sites, elevated buildings, or buildings in high wind speed zones, a structural engineer should confirm the bracket centres and fixing specification required to resist the design wind uplift forces for the specific location and building geometry.
For NHBC-registered new-build projects, Chapter 7.1 of the NHBC Standards covers parapet wall and flat roof construction requirements. Bracket specification and fixing centres on new-build copings should be consistent with those requirements and with any wind loading calculations carried out for the house type.
